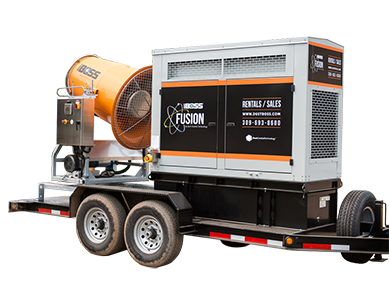

Dust Boss DB60 Fusion
The DB-60 is paired with a gen set and placed on a roadworthy trailer, ideal for job sites lacking a convenient power source. The versatile DB-60 Fusion can cover up to 62,800 square feet (5,834 square meters) from its trailer-mounted location. The accompanying gen set with John Deere diesel engine allows for 24 hours of runtime without refueling.
GENERAL SPECS
Throw: 200 feet (60 meters).
Fan: 30,000 CFM (849.50 CMM) generated by 25 HP fan.
Coverage: 62,800 square feet (5,834 square meters).
Droplet size: 50–200 microns Hoses, couplings, and relevant tools provided.
Standard hitch: Pintle.
Adjustable throw angle: 0°-50°.
Premium efficiency direct-drive motor.
0-180° user defined oscillation.
Touch screen controls.
WYE-Delta.
WATER REQUIREMENTS
Standard configuration includes booster pump for supplied pressure. Optional pump with lift available.
Supply: Minimum 10 PSI constant pressure must be delivered to booster pump.
Maximum inlet water pressure to booster pump: 100 PSI
Maximum outlet pressure with booster pump: 250 PSI
In-line 30 mesh 595 micron filter system should be used at all times.
Contact us for recommendations if using non-portable water.
Connection: 38.10 mm cam-and-groove quick disconnect female coupling for fire hose (included).
Technical Data
| Water Pressure, psi |
40 60 80 100 |
| Water Flow with Booster Pump, gpm |
37.2 37.5 38.1 39 |
| Water Flow with out Booster Pump, gpm |
17.7 21.9 25.5 28.2 |
| Power |
45 kW Genset with John Deere diesel Tier III Flex engine. |
| Noise |
90 -105 decibels at 0 feet. |
| Dimensions (W x L x H) |
1.73 x 2.99 x 2.36 m |
| Weight |
1451.50 Kg |
