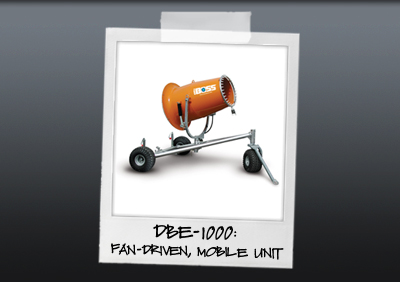

Dri Boss DBE1000

The DBE-1000 is a fan based, mobile unit which is easy to use, easy to maintain, energy efficient and quiet.  Excellent overall value..

« Previous Product

Dri Boss DBE1000

Dri Boss DBE1000

The DBE-1000 Evaporator is a Long-throw design (over 200 feet or 60 meters) that efficiently and reliably evaporates excess water in large areas.

Features

  • FLEXIBLE PLUME HEIGHT to adjust droplet drift, for greater efficiency in swirling or constantly changing winds and higher evaporation rates due to longer hang time.
  • TEFLON® SPIRAL NOZZLES reduce fouling and clogging and provide for easy cleaning.
  • MOBILE UNIT allows easy repositioning to take advantage of changing wind direction and speed.

Benefits

  • MOBILITY: The DBE-1000 Evaporator is designed to move easily around your site, allowing operators to reposition the unit to take advantage of changing wind direction and speed.
  • EXCELLENT PERFORMANCE: The high air velocity from our unique fan and barrel design combines with optimized water droplets to accelerate evaporation. Annual evaporation rates up to 75% have been achieved, with averages typically between 25 and 65%. Actual rates depend upon many factors, including ambient temperature, relative humidity, water make-up and wind.
  • EASY TO MAINTAIN: The DBE-1000 is designed for easy cleaning and maintenance. The fan motor has been developed for long life in wet conditions, and the pre-lubricated, sealed bearings eliminate the need for weekly or monthly lubricating.
  • EXTREME DUTY: This evaporator design has evolved from 10 years of experience in industrial and extreme outdoor applications. Critical components are manufactured from stainless steel for extended life in harsh environments.

Specifications

FAN AND HEAD SYSTEM

  • 25 HP world motor for 3-phase / 480 volt / 60 cycle and 3-phase / 400 volt / 50 cycle power (motors for other voltages available on request).
  • Aluminum blades rotating at 1800 rpm (480 Volt / 60 cycle) or 1450 rpm (400 volt / 50 cycle).

MOUNT

  • 3-wheel galvanized A-frame carriage. )ptions available for galvanized turntable enclosure carriage with oscillator or tower mounts
  • Tow bar with wheel lock.
  • Hand jack to raise and lower angle of water plume.

WATER SYSTEM

  • Stainless steel spray manifold. Designed for flow rate of 25 gpm (95 lpm) at 100 psi (7 bar) water pressure.
  • Teflon® spiral nozzles.

ELECTRICAL

  • 25 HP premium efficiency fan motor rotating at 1800 rpm (480 volt / 60 cycle) or 1450 rpm (400 volt / 50 cycle).
  • Stainless steel control panel with start and stop buttons.
  • 150-foot (45 m) electrical cord.

WARRANTY

  • Full one-year warranty on all parts and workmanship.

OPTIONS

  • Oscillation available.
  • Y-line manual flush filter for dirtier water
  • High-volume nozzle configuration.
  • Longer electrical cord available without splices.

Why Evaporate?

Evaporation is considered as an alternative process to a number of wastewater treatment applications, such as reverse osmosis, chemical dosing or desalination.

The evaporation process may be carried out naturally in solar evaporation ponds (which is slow and requires a great deal of area) or by mechanical evaporation. Natural solar evaporation is often limited by land availability and the cost of constructing additional storage ponds, not to mention the added cost of clean-up and re-vegetation.

Evaporation machines can significantly enhance the evaporation process, with up to 14 times more efficiency than pond evaporation. DriBoss® evaporation machines are relatively compact, reliable and efficient and can be transported to different sites as necessary. They can be a low-cost addition to improve evaporation rates and volumes on existing containment ponds or to minimize new pond surface area.
